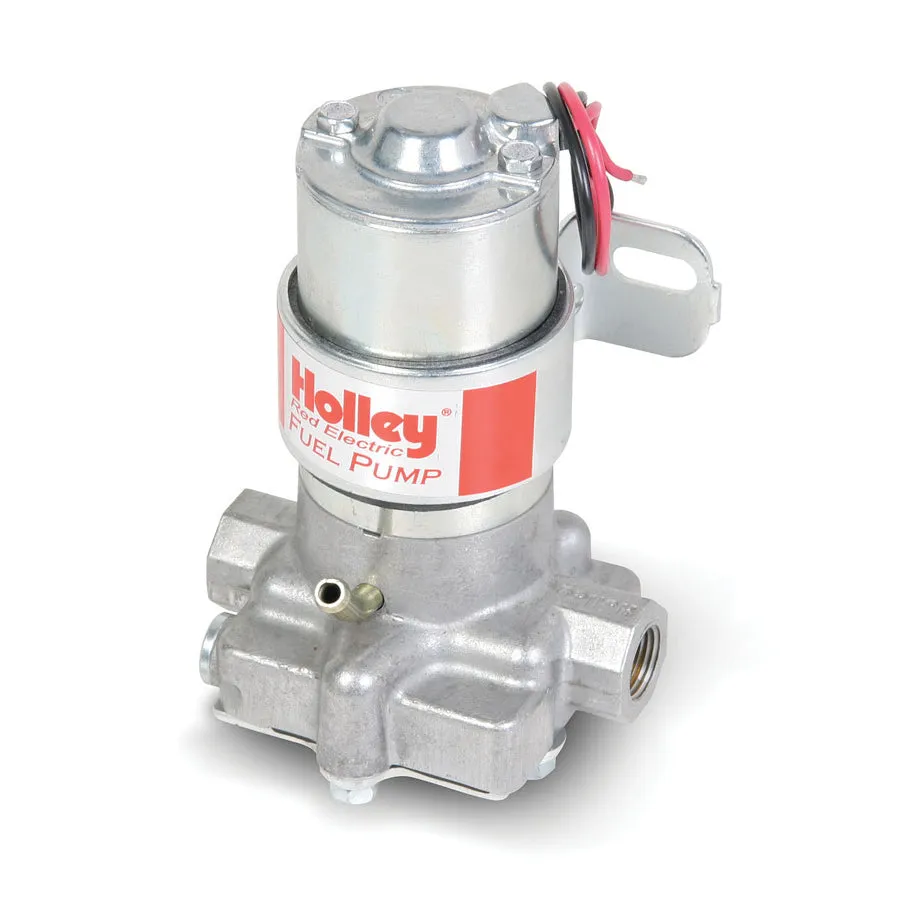

Name: Holley Electric Fuel Pump - 97 GPH "Red" Electric Fuel Pump
SKU: 133272

97 GPH RED® Electric Fuel Pump.

Features:

Low pressure pumps that are perfect for NOS wet system pump

New tumble polished billet look

New lower housing casting for enhanced fuel flow

Improved design for street/strip applications

Distinctive "RED" logo Flows 97 GPH (free flow)

Flows 67 GPH at 5 PSI

Pressure is pre-set at 7 PSI

Regulator is not required for most applications

Motor draws only 2 Amps current

7-1/2 Amp fuse recommended

Provides constant fuel flow with no pulsation

Has externally accessible pressure relief valve

Rotor/Vane pump design is more tolerant of contaminated fuels

Weighs only 2. 88 lbs.

Includes mounting bracket

Repair kits are readily available

Can be serviced from either pump end or brush cap end

NOT compatible with alcohol or methanol fuels

Use of safety shut-off switch, P/N 12-810, strongly recommended

Not designed or recommended for use with fuel injection systems

Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. These are to be used with 12 volt systems only.

Lower housing casting designed for enhanced fuel flow and quiet operation

Maximum pressure is 7 psi

Motor draws 2 amps current

7 1/2 amp fuse recommended

Constant fuel flow with no pulsation

Improved design for street/strip applications

Not designed to be used on aircraft of any type.

Distinctive Î“Ã‡ £Red" logo

Flows 97 GPH (free flow)

Flows 71 GPH at 4 psi

regulator is not required

Has externally accessible pressure relief valve (max 7 psi)

Rotor/vane pump design is more tolerant of contaminated fuels

Weighs only 2.88 lbs

Includes mounting bracket

Repair kits are readily available

Can be serviced from the pump end

Not compatible with alcohol or methanol fuels

Use of safety shut-off switch, P/N 12-810, strongly recommended

Not designed or recommended for use with fuel injection systems

Meets U.S. Coast Guard regulations

Includes Fuel/vapor tube

Product Description:

Fuel Pump

Marine Red

Electric

In-Line

71 gph at 4 psi

3/8 in NPT Female Inlet / Outlet

Silver

Gas

Sold Individually
