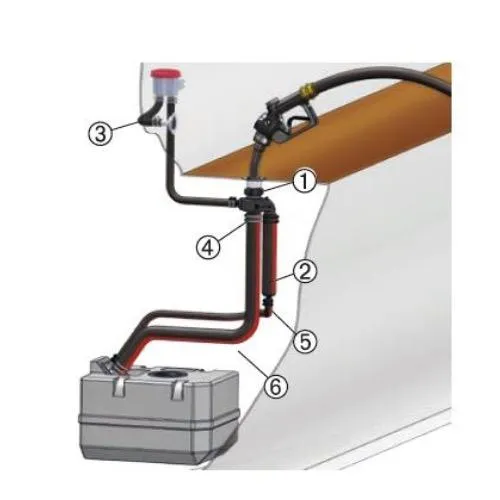

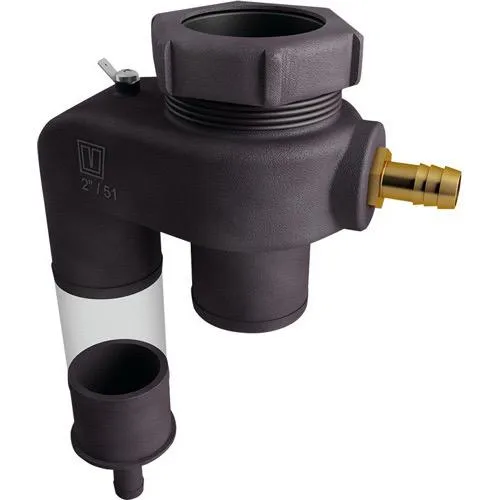

The fuel Splash-stop is connected right under the deck filler plate to ensure that overflowing fuel or foam cannot flood onto the deck. The excess diesel* or petrol fuel is collected in a parallel hose which functions as a reservoir, returning the fuel back into tank.

The capacity of the reservoir is determined by the length and diameter of the hose. The housing and hose connection are made of anodized aluminium. The fill and vent lines, hose clamps and a matching stainless steel (AISI 316) deck entry should be ordered separately. The fuel Splash-Stop meets all the latest CE (ISO 7840 and ISO 10088) and ABYC standards.

FSA3816

Suitable for ÿ38 mm hose and 16 mm breather line with a capacity of 1.1 ltr p/mtr

Recommended for a tank of 40 litres
FSA5116

Suitable for ÿ51 mm hose and 16 mm breather line with a capacity of 2 ltr p/mtr

Recommended for a tank of 400 litres
FSA5119

Suitable for ÿ51 mm hose and 19 mm breather line with a capacity of 2 ltr p/mtr

Recommended for a tank of 400 litres

Other Details:

Dimension (L x W x H): 146 x 86 x 121mm

* Note: A no-smell filter (for diesel only) can be fitted in the tank breather line to prevent unpleasant smells. If the filter is located well above the deck entry, the breather line may exit lower than the deck level if required. To prevent expensive fuel theft, we recommend placing a FUELSAFE into the Splash-Stop.
