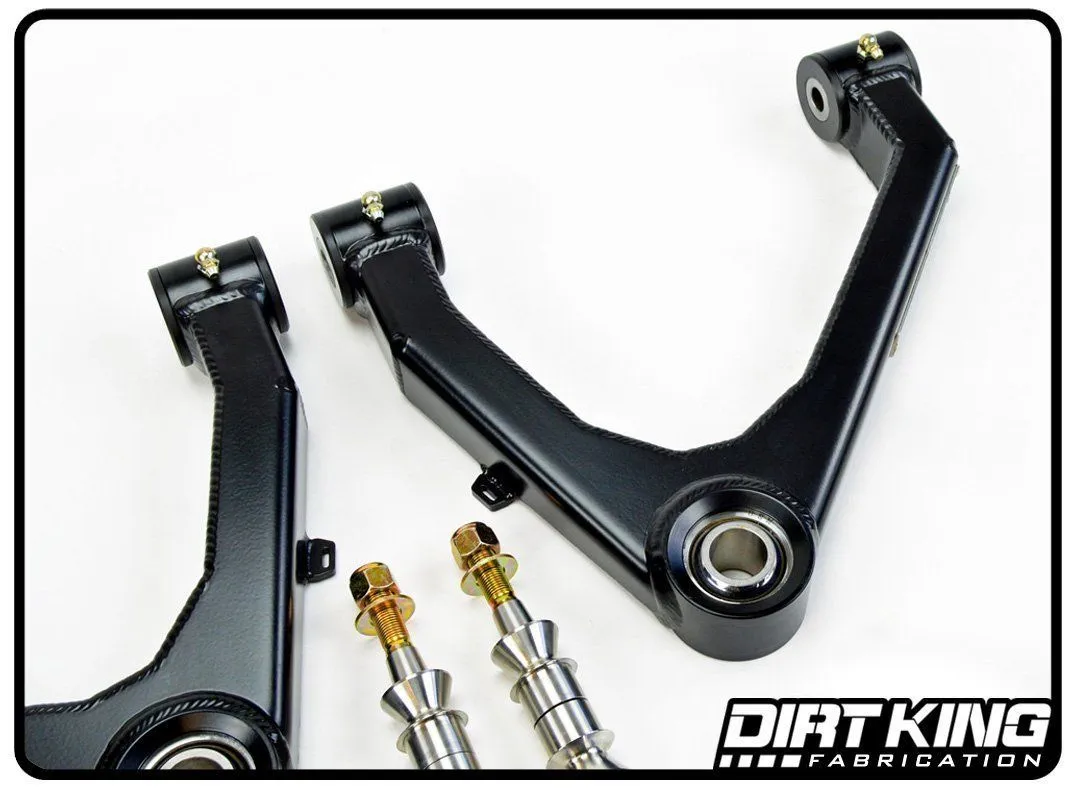

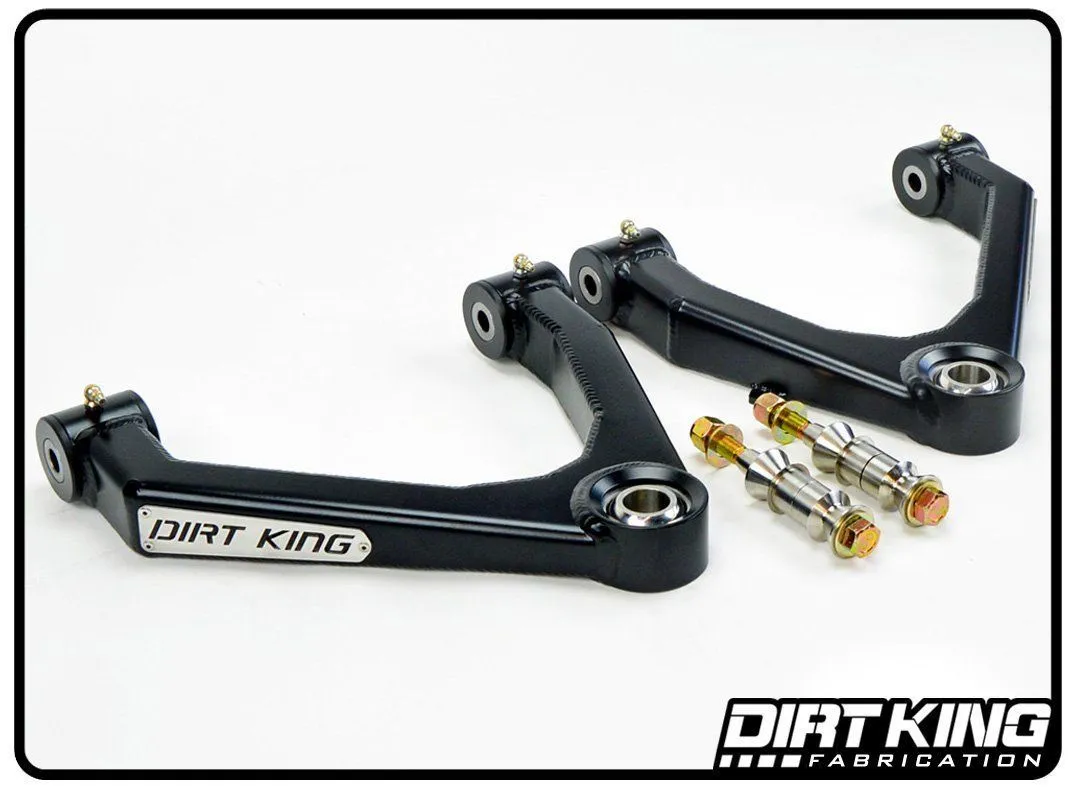

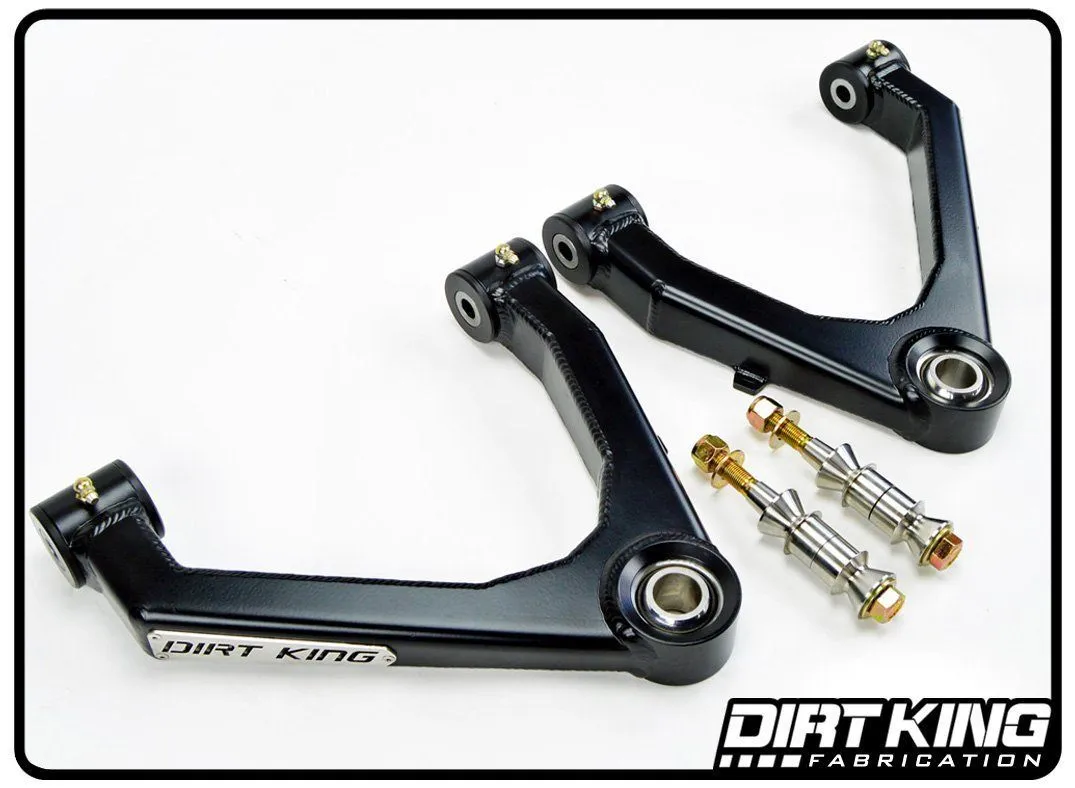

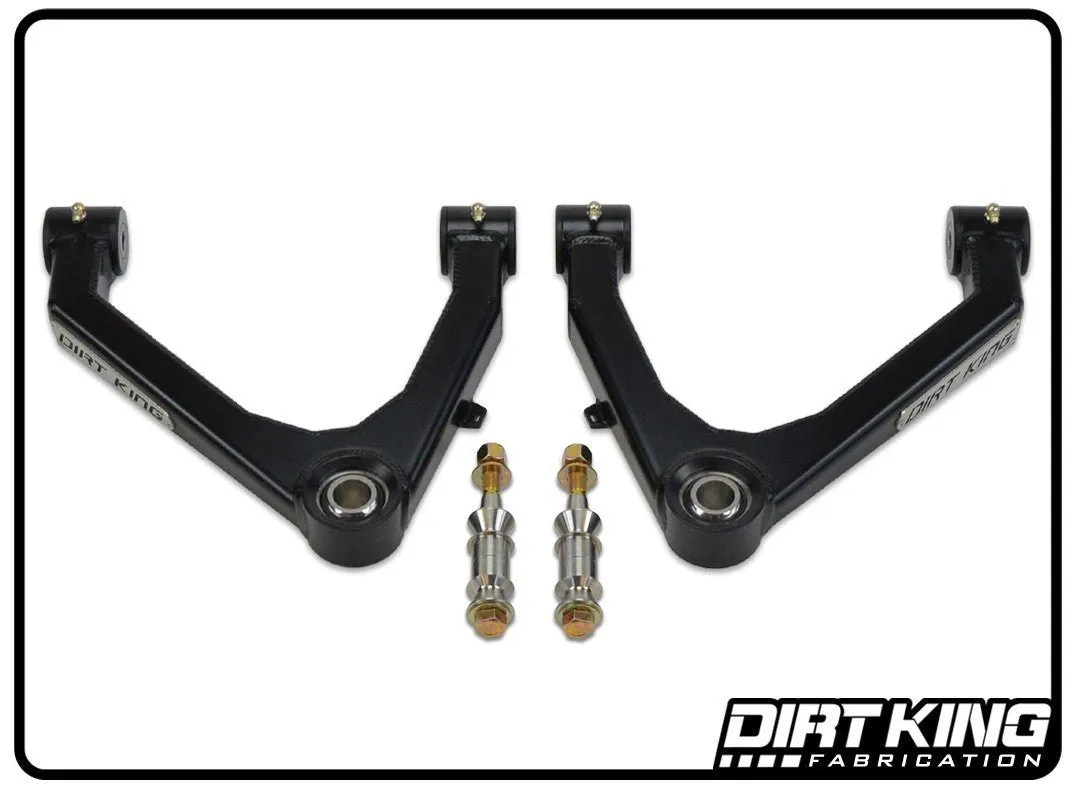

Dirt King Fabrication's Boxed Upper Control Arms for the 2007-2018 Chevy/GMC 1500 are CAD designed and proudly made in the USA.
There are multiple issues when lifting your vehicle with stock upper control arms. Both the geometry and strength are compromised due to over articulating the stock arms. We solved these problems by designing our upper control arms with increased castor and repositioned pivot angles reducing stress on the joints. The increased castor allows for proper alignment and improved handling. We also replaced the weak factory ball joints with 1” stainless steel uniballs for maximum strength and increased articulation. For the inner pivots we use durable delrin bushings with grease fittings for easy servicing. To mount the arms to the spindle we include high grade 17-4 stainless steel misalignment spacers and grade 8 hardware. All of the components on our upper control arms are rebuild-able or replaceable to make this product last a lifetime.
KEY FEATURES:
- CAD designed
- Boxed plate construction
- 4130 chromoly uniball cups
- Brushed stainless steel logo plates
- Preassembled for fast installation
- Grease fitting ports for easy servicing
- Zinc plated components for corrosion resistance
- Professionally MIG welded
- Proudly made in the USA
SPECS:
- Wheel Travel: Additional 2” of travel compared to stock
- Amount of Lift: 0-3”
- Track Width: Stock
- Maximum Tire Size: 35”
- Maximum Backspacing: 4.75”
- Minimum Rim Size: 17”
- Compatible with Sway Bar: Yes
- Coil Over Shock Size: Stock or OEM replacement shocks
